- Superior insulation for long-term stable operation
- High moisture/corrosion resistance for outdoor & industrial environments
- Non-flammable epoxy resin ensures fire safety
- Compact space-saving design
- Quiet operation suitable for residential & commercial areas
product details
Data download
Related products
> Product Brief
SCB14-NX2 transformer is a dry-type transformer that meets the new secondary energy efficiency, SCB14 transformer is based on our company's SCB13 model, through the optimization of core, coil and production process, to achieve the purpose of skills and noise reduction, is the next few years the country to promote energy-saving dry-type transformer.

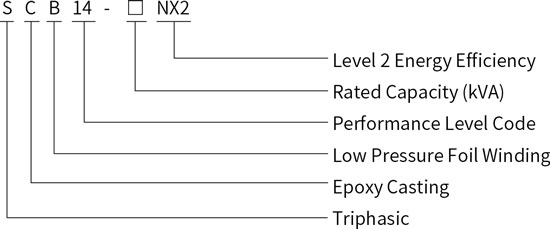

> Model Meaning

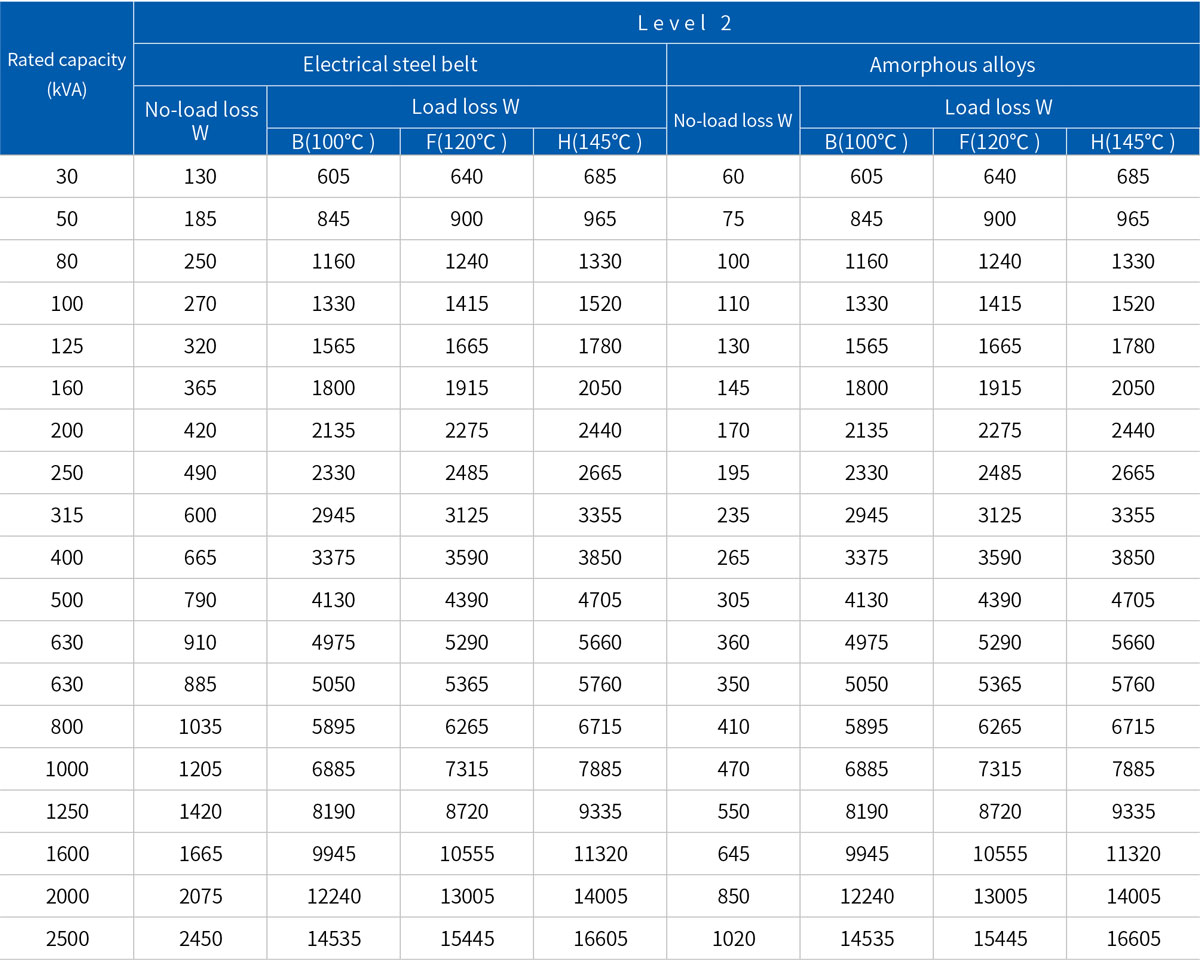

> Main Technical Parameters
