HBC-40.5kV series ring main unit provides 10 kinds of standard combination forms, whichcan meet the application requirements of most 36 ~ 40.5kV distribution network.

HBC-40.5kV is acompact switchgear that can provide almost any combination of selected functional units.

HBC-40.5kV series has interface and user interface, providing complete switch application solution in 36 ~ 40.5kV secondary distribution network.

HBC-40.5kV series stainless steel gas chamber is filled with SF6 gas, which completely seals all live parts and switches from the outside world. This fully sealed system makes the internal switch and all live parts unaffected by external environmental changes, ensuring high reliability, personnel safety and practically maintenance free.

Place of Use

◇ Compact secondary substation

◇ Small industrial and mining enterprises

◇ Wind power plant

◇ Hotel, shopping mall, office building, business center, etc

◇ C-load switch unit

◇ D-direct cable connection unit

◇ De - direct cable connection unit with earthing switch

◇ F-load switch fuse unit

◇ V-vacuum circuit breaker unit

Product classification

According to the type of switch, it can be divided into load switch with grounding assembly (referred to as C module), load switch without grounding assembly (referred to as CB module), circuit breaker with grounding assembly (referred to as V module), circuit breaker without grounding assembly (referred to as VB module), circuit breaker contact switch (referred to as VZ module), load switch+fuse combination electrical switch assembly (referred to as F module), and isolation switch assembly (referred to as G module).

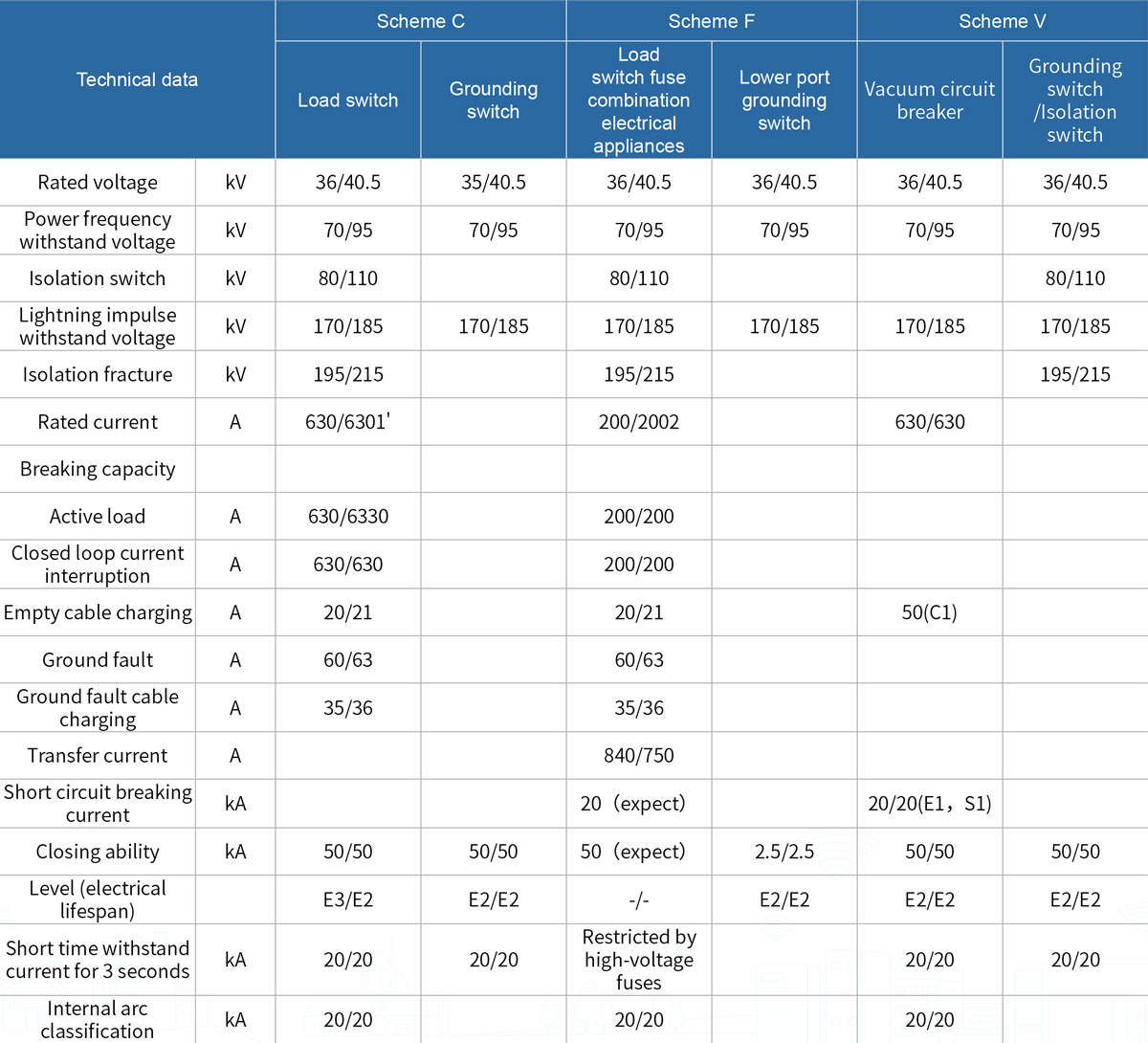

Technical parameter

Depending on the rated current value of the fuse

The HBC-40.5kV series is tested according to the issued GB standards: GB3804-2004, GB16926-1997, GB3906-2006, GB1984-2003
