Product

Overview

JP series outdoor integrated power distribution box is a comprehensive power distribution device with the functions of metering, outgoing and reactive power compensation. It has the functions of short circuit, overload, over-voltage, leakage protection and so on,The utility model has the advantages of beautiful appearance, economy and practicability, and is installed on the pole of an outdoor column and transformer, and is a new generation of ideal distribution product for urban and rural power grid transformation.

Model and Meaning

Use Environmental Conditions

1、Environmental temperature: -25 degrees, +40 degrees;

2、Air relative humidity: daily average value is not greater than 90%, the average monthly value is not greater than 90%;

3、Elevation: no more than 3000m;

4、Installed in the absence of severe shock and shock, non corrosive gas sites.

Product feature

1. Completely replace the traditional distribution box (cabinet) function.

2. The integrated distribution transformer monitoring and metering terminal can realize the accurate measurement of electric energy and the monitoring of various parameters of distribution transformer operation, and can monitor, record and save various indexes of electric energy.

3. The full english interface can display the three-phase voltage, current, active / reactive power, active / reactive kwh, power factor and other main electrical parameters of the power grid constantly, as well as the operation status of the capacitor.

4. It has perfect over limit alarming, overvoltage, undervoltage, harmonic exceeding alarming and action functions to protect the safety of the equipment.

5. It can online record the daily voltage, current, active / reactive power, active / reactive kwh, power factor, harmonic distortion, maximum and minimum voltage and their occurrence time of each phase every month; Be able to record all equipment operation events and provide necessary basis for accident analysis; It can record the switching process of reactive power compensation capacitor and provide intuitive information for users to understand the effect of reactive power compensation in detail.

6. The switching element adopts a new generation of intelligent auto-reclose switch, which can realize zero current switching, and the dynamic compensation response time is less than 100ms.

7. The box has the advantages of small volume, light weight, high integration, simple and convenient installation and maintenance, reliable performance, electrostatic powder spraying, It can effectively prevent weathering and corrosion to ensure long service life.

8. The utility model has the advantages of novel and reasonable structure, high protection level, convenient installation, commissioning, maintenance and overhaul, etc.

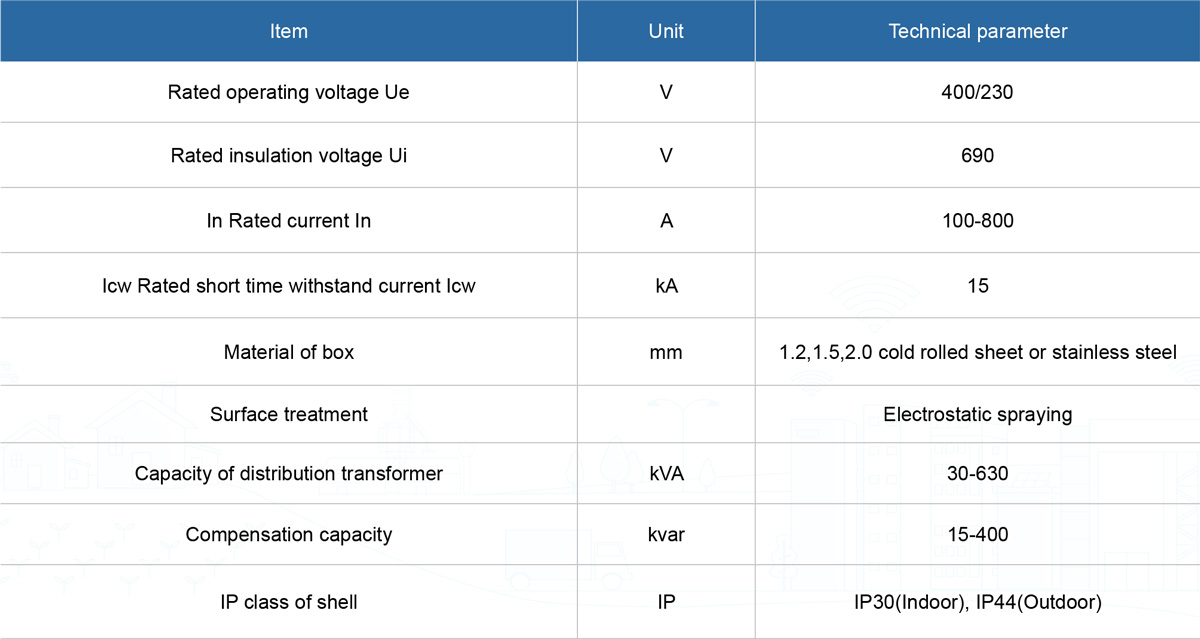

The Main Technical Parameters
