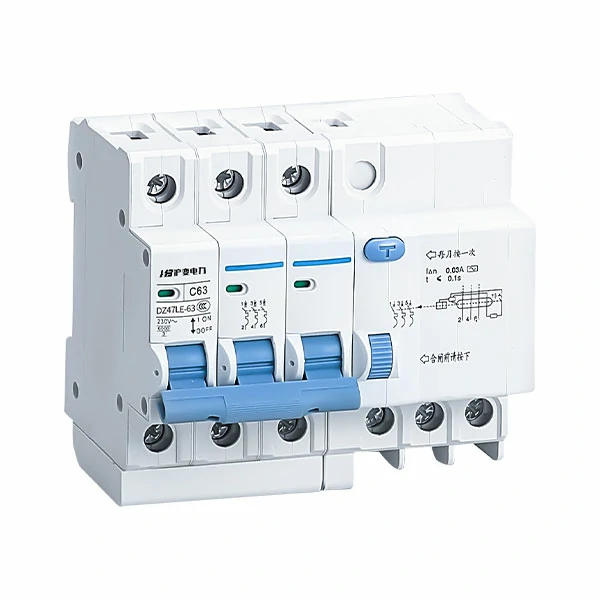

- High Breaking Capacity
- Compact Modular Design
- Overload & Short-Circuit Protection
- Optional Earth Leakage (30mA)
- For Final Distribution Circuits
product details
Data download
Related products
1. Application
DZ47LE-63 is applicable to a line of AC 50Hz/60Hz, rated voltage 230V forsingle pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole andrated current up to 40A. It can protect the line and motor from overload andshort circuit. It can also be used for infrequent line conversion andinfrequent motor start. It conforms with the standards of IEC61009.
2. Main Technical Parameter
| Type | DZ47LE-63 | |
| Pole | 1P+N,2P | 3P,3P+N,4P |
| Rated current (A) | 6,10,16,20,25,32,40,50,63 | |
| Rated voltage (V) | 230 | 400 |
| Rated short circuit breaking capacity Icn(KA) | 6-32A :6 / 40-63: 4.5 | |
| Rated residual making/breaking capacity I△m(A) | 2000 | |
| Rated residual action current I△n(A) | 0.03,0.05,0.1,0.3 | |
| Rated residual non-action current I△no(A) | 0.5I△n | |
| Rated current(A) | 1-6A | 10A | 16,20A | 25A | 32A | 40,50A | 63A |
| Nominal cross section of wire mm2 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 |
3. Residual currentbreaking time
| In(A) | I△n(A) | Breaking time(s) when equals to rating following | ||||
| I△n | 2I△n | 5I△n | 5,10,20,50,100,200,500a(A) | I△tb | ||
| 6-63 | 0.03, 0.05, 0.1, 0.3 | 0.1 | 0.06 | 0.04 | 0.04 | 0.04 |
4. The over-currentprotection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
| 30±oC | Cold position | 1.13In | t≥1h | Non-release | - |
| Carried out immediately after previous test | 1.45In | t< 1h | Release | - | |
| Cold position | 2.55In | 1s < T < 60S(IN≤32A) | Release | Current smoothly rises to specified value within 5s | |
| Cold position | 2.55In | 1s < T < 120S(IN>32A) | Release | ||
| -5~+40oC | Cold position | 3In | t≥0.1s | Non-release | Type B |
| Cold position | 5In | t<0.1s | Release | Type B | |
| Cold position | 5In | t ≥ 0.1s | Non-release | Type C | |
| Cold position | 10In | t < 0.1s | Release | Type C | |
| Cold position | 10In | t≥0.1s | Non-release | Type D | |
| Cold position | 20In | t<0.1s | Release | Type D |

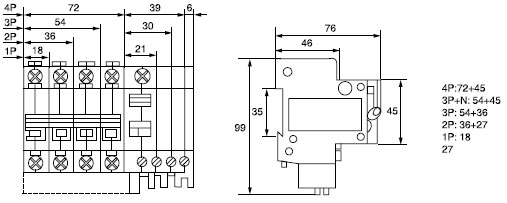

5. Dimension
