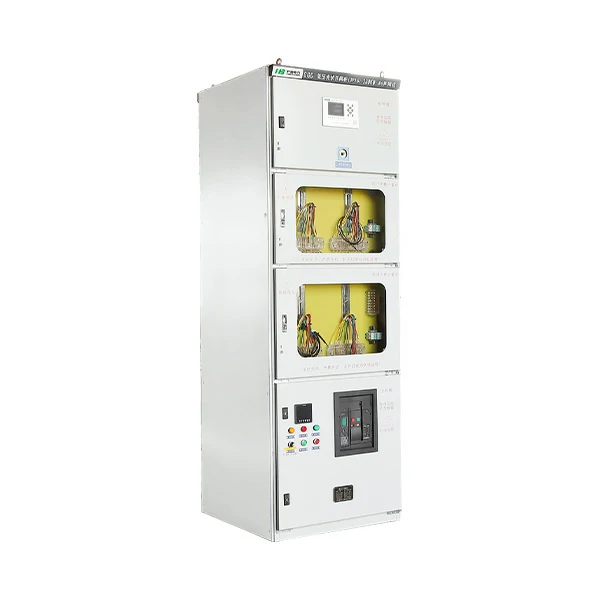

Grid-connection Cabinet Overview

The grid-connection cabinet, also known as the Grid-connection Cabinet in English, is an important electrical device used to achieve the electrical connection, control, and protection between the power generation system and the power grid. It is widely applied in distributed power generation systems, such as solar photovoltaic power plants, wind farms, as well as in some factories and commercial buildings with self-provided power sources. It is like a "bridge" and a "guardian" between the power generation system and the power grid, ensuring that electrical energy can be safely, stably, and efficiently transmitted from the power generation end to the power grid.

Advantages of Grid-connection Cabinet Products

1.Excellent Safety: The grid-connection cabinet is equipped with a complete set of protection functions, such as overcurrent protection, overvoltage protection, undervoltage protection, leakage protection, and islanding protection. For example, in the case of overcurrent protection, when the current in the circuit exceeds the set safety threshold, the protection device will act quickly to cut off the circuit, preventing damage to electrical equipment due to overcurrent and avoiding safety accidents such as fires. In terms of islanding protection, when the power grid fails and loses power, the grid-connection cabinet can quickly detect and disconnect the connection with the power grid in a timely manner, preventing the distributed power generation system from operating in an island mode, ensuring the personal safety of power grid maintenance personnel and the safe and stable operation of power grid equipment. Its protection level is usually high, which can effectively prevent dust, water, and foreign objects from entering, adapting to various complex outdoor or indoor environments.

2.High Reliability: High-quality electrical components and advanced manufacturing processes are adopted to ensure long-term stable operation. The key internal components, such as circuit breakers, contactors, relays, etc., are all products of well-known brands, with good electrical performance and mechanical life. For example, the copper busbar connections in the main circuit use high-purity copper materials, which have excellent electrical conductivity and low resistance, effectively reducing power loss and heat generation, and improving the reliability of the system. In the design, factors such as electrical clearance and creepage distance are fully considered to ensure that the electrical performance remains stable and reliable under different working environments, reducing the probability of failures and providing a solid guarantee for the continuous operation of the power generation system.

3.Accurate Power Monitoring and Control: It has accurate power monitoring functions and can real-time monitor power parameters such as voltage, current, power, and frequency. Through these data, operation and maintenance personnel can timely understand the operating status of the power generation system and determine whether the power quality meets the grid access standards. Once abnormal parameters are detected, the grid-connection cabinet can automatically adjust and control to ensure that the output electrical energy is stable and qualified. For example, when the detected voltage fluctuation exceeds the allowable range, the grid-connection cabinet can adjust the output voltage of the inverter to restore it to the normal level, ensuring the smooth grid connection of electrical energy and effectively protecting the power grid and power generation equipment from the impact of unstable electrical energy.

4.Convenient Maintenance and Management: The design focuses on the convenience of maintenance and adopts a modular structure, with each functional module being relatively independent. When a certain module fails, maintenance personnel can quickly locate and replace the faulty module, greatly shortening the maintenance time and reducing maintenance costs. At the same time, the grid-connection cabinet is usually equipped with an intelligent monitoring system that supports remote monitoring and operation. Operation and maintenance personnel can view the operating data, fault information, etc. of the grid-connection cabinet in real-time through a computer or mobile terminal without having to be on-site, realizing remote diagnosis and management, improving operation and maintenance efficiency, and also facilitating the centralized management of multiple distributed power generation sites.

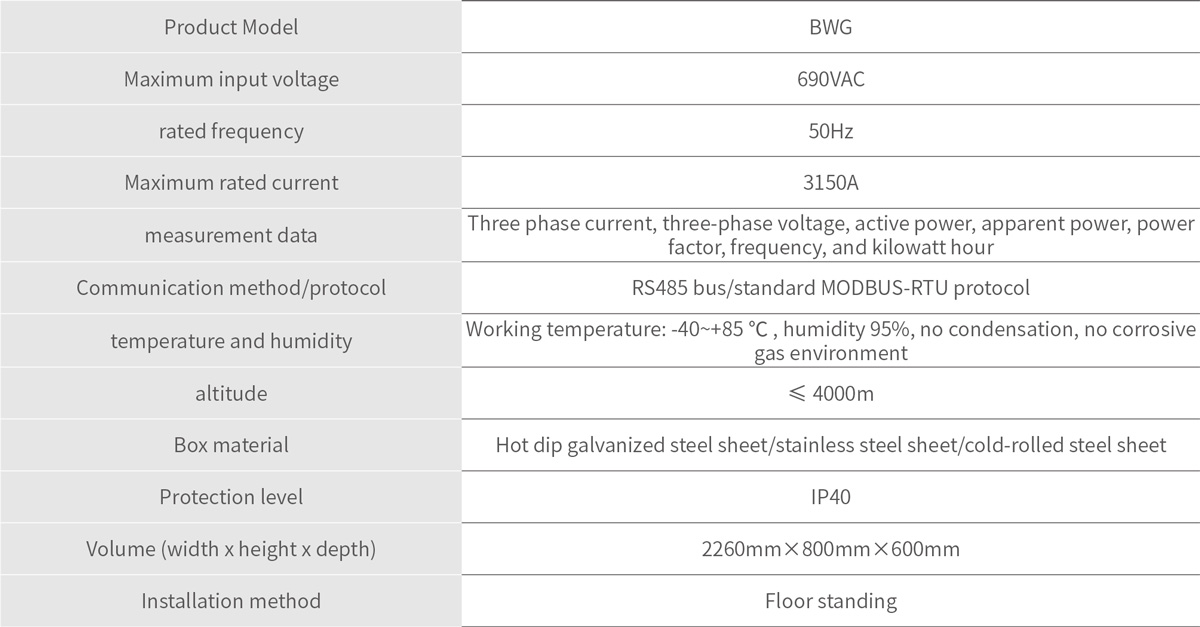

Technical Specifications
